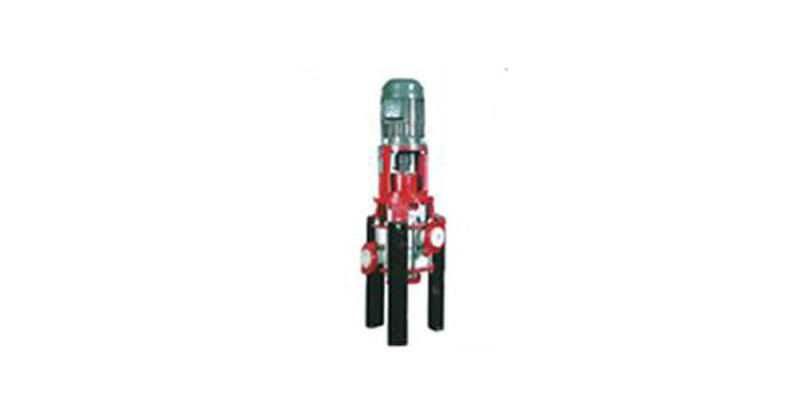

We offer vertical Glandless Seal less Pump (P.P.-VPL And VPH Type) that is designed according to well known successful two pipe principle, chemical process pump of polypropylene (plastic) material.

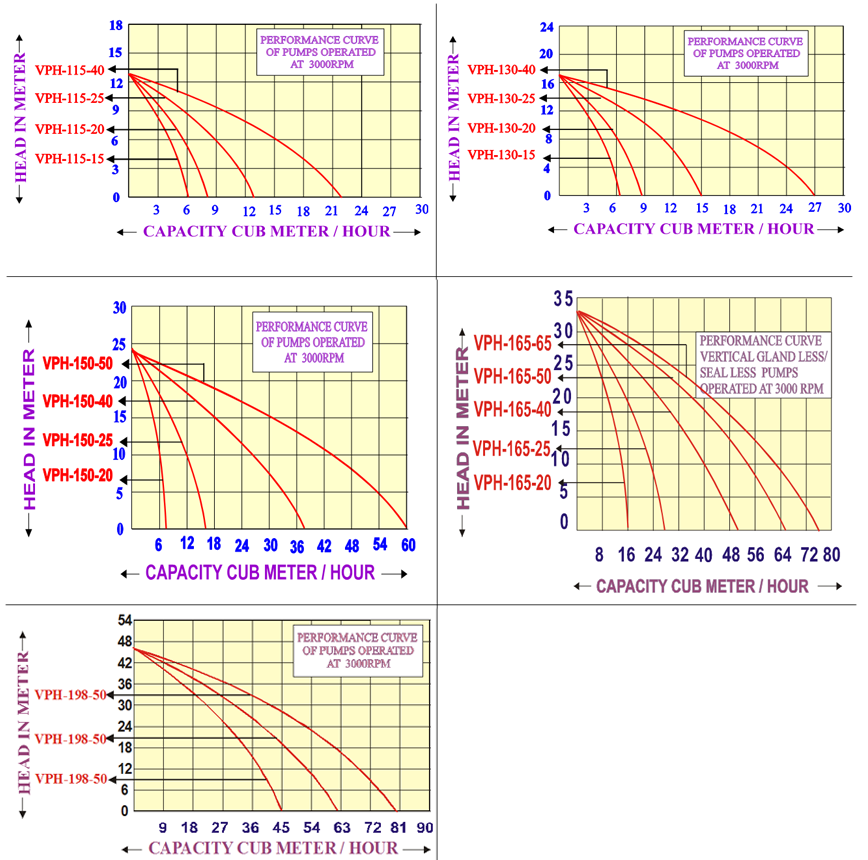

| model type | size ( m.m.) | flow capacity max lTRS/HR. | head max meters | h.p. reqd at 3000 rpm | pressure max psi / kgs | ||
|---|---|---|---|---|---|---|---|
| suction | discharge | over flow | |||||
| VPH-115-15 | 25 | 15 | 25 | 6,000 | 13 | 1 | 19 / 1,35 |
| VPH-115-20 | 25 | 20 | 25 | 8,000 | 13 | 1 | 19 / 1,35 |
| VPH-115-25 | 40 | 25 | 25 | 13,000 | 13 | 1 | 19 / 1,35 |
| VPH-115-40 | 50 | 40 | 40 | 22,000 | 13 | 2 | 19 / 1,35 |
| VPH-130-15 | 25 | 15 | 25 | 6,500 | 17 | 2 | 25,5 / 1,8 |
| VPH-130-20 | 25 | 20 | 25 | 8,500 | 17 | 2 | 25,5 / 1,8 |
| VPH-130-25 | 40 | 25 | 25 | 15,000 | 17 | 2 | 25,5 / 1,8 |
| VPH-130-40 | 50 | 40 | 40 | 27,000 | 17 | 3 | 25,5 / 1,8 |
| VPH-150-20 | 25 | 20 | 25 | 8,000 | 24 | 2 | 35 / 2,5 |
| VPH-150-25 | 40 | 25 | 25 | 16,500 | 24 | 3 | 35 / 2,5 |
| VPH-150-40 | 50 | 40 | 40 | 38,000 | 24 | 5 | 35 / 2,5 |
| VPH-150-55 | 65 | 50 | 50 | 61,000 | 24 | 7,5 | 35 / 2,5 |
| VPH-165-20 | 25 | 20 | 25 | 16,000 | 33 | 3 | 50 / 3,5 |
| VPH-165-25 | 40 | 25 | 25 | 27,500 | 33 | 5 | 50 / 3,5 |
| VPH-165-40 | 50 | 40 | 40 | 50,000 | 33 | 7,5 | 50 / 3,5 |
| VPH-165-50 | 65 | 50 | 50 | 65,000 | 33 | 10 | 50 / 3,5 |
| VPH-165-65 | 75 | 65 | 65 | 75,000 | 33 | 10 | 50 / 3,5 |
| VPH-198-50 | 65 | 50 | 50 | 45,000 | 45 | 10 | 63 / 4,5 |
| VPH-198-50 | 65 | 50 | 50 | 60,000 | 45 | 12,5 | 63 / 4,5 |
| VPH-198-50 | 65 | 50 | 50 | 80,000 | 45 | 15 | 63 / 4,5 |
