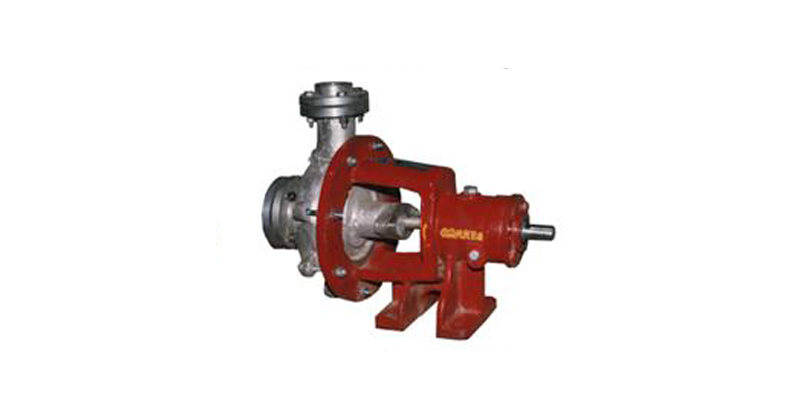

We offer rugged centrifugal metal pump in cast – iron, s.s.-304, s.s.-316, alloy-20, and any other metals those are designed, engineered and constructed to handle corrosive, abrasive and other aggressive fluids in chemical, pharmaceutical and any other processing industries.

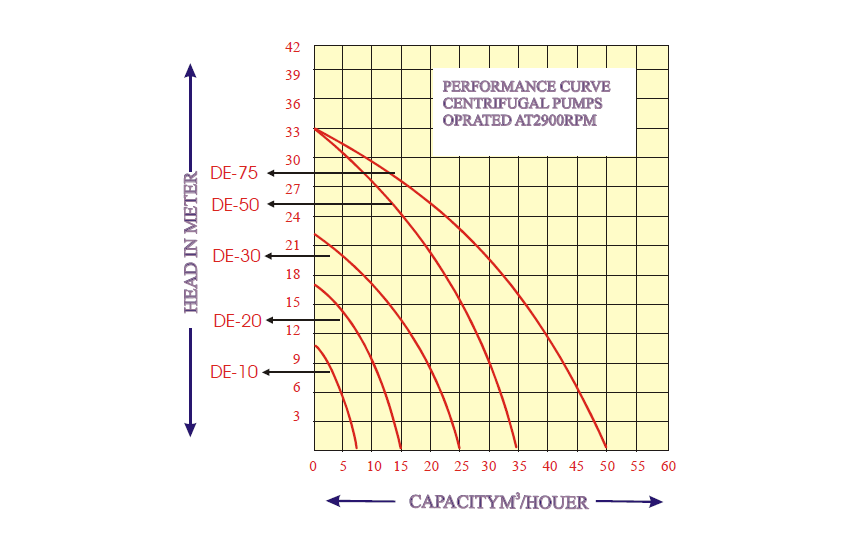

| model type | size ( m.m.) | flow capacity max ltrs/hr | head max meters | h.p. required at 3000 rpm | pressure max psi / kgs | |
|---|---|---|---|---|---|---|
| suction | discharge | |||||
| DE-10 | 25 | 19 | 7500 | 11 | 1 | 15 / 1.1 |
| DE-20 | 40 | 25 | 15000 | 17 | 2 | 25 / 1.8 |
| DE-30 | 40 | 40 | 25000 | 22 | 3 | 30 / 2.2 |
| DE-50 | 50 | 40 | 35000 | 33 | 5 | 50 / 3.6 |
| DE-75 | 50 | 40 | 50000 | 33 | 7,5 | 50 / 3.6 |
