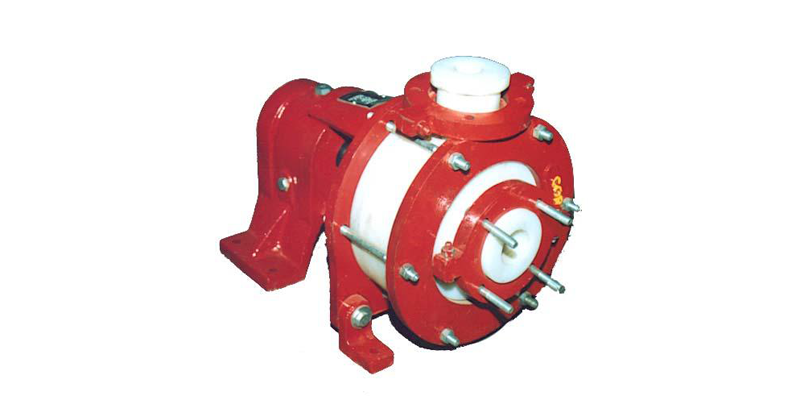

We design and develop a wide range of centrifugal pumps those are widely used for various chemical processes in different industries. These pumps also find application in water effluent treatment plants.

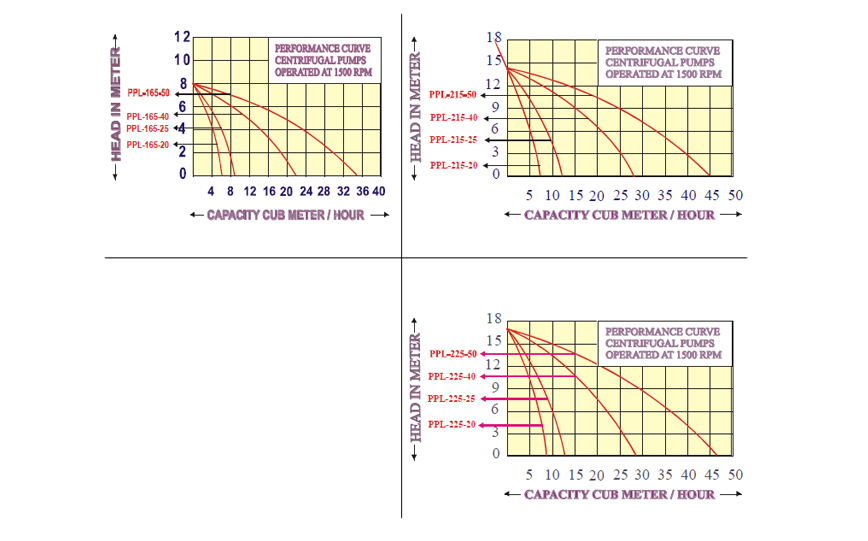

| model type | size ( m.m.) | flow capacity max lTRS/HR. | head max meters | h.p. required at 1500 rpm | pressure psi / kgs | |
|---|---|---|---|---|---|---|
| suction | discharge | |||||
| PPL-165-20 | 25 | 20 | 6,000 | 8 | 0,5 | 12 / 0,85 |
| PPL-165-25 | 40 | 25 | 9,000 | 8 | 1 | 12 / 0,85 |
| PPL-165-40 | 50 | 40 | 22,000 | 8 | 2 | 12 / 0,85 |
| PPL-165-50 | 65 | 50 | 35,000 | 8 | 3 | 12 / 0,85 |
| PPL-215-20 | 25 | 20 | 8,000 | 14 | 2 | 20 / 1,45 |
| PPL-215-25 | 40 | 25 | 12,000 | 14 | 2 | 20 / 1,45 |
| PPL-215-40 | 50 | 40 | 27,000 | 14 | 3 | 20 / 1,45 |
| PPL-215-50 | 65 | 50 | 45,000 | 14 | 5 | 20 / 1,45 |
| PPL-225-20 | 25 | 20 | 8,400 | 17 | 2 | 25 / 1,8 |
| PPL-225-25 | 40 | 25 | 12,500 | 17 | 2 | 25 / 1,8 |
| PPL-225-40 | 50 | 40 | 28,000 | 17 | 3 | 25 / 1,8 |
| PPL-225-50 | 65 | 50 | 47,000 | 17 | 5 | 25 / 1,8 |
