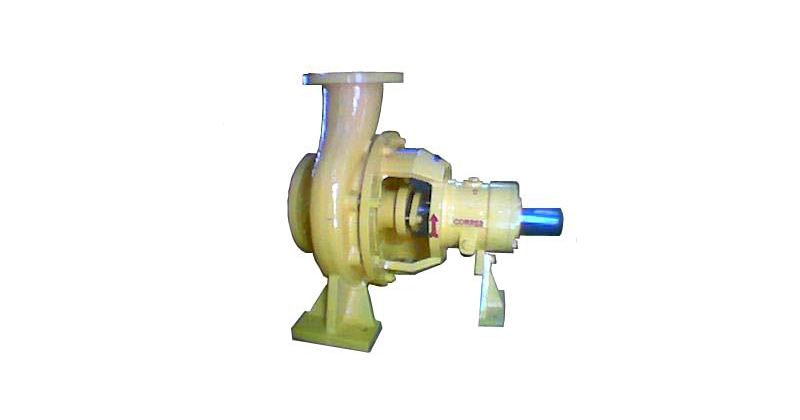

We offer back pullout type centrifugal pump those are widely used to move liquids or slurries in different industries like chemical, pharmaceutical, paper, sugar and many other process industries.
| model type | size ( m.m.) | flow capacity max lTRS/HR. | head max meters | h.p. required at 1500 rpm | pressure max psi / kgs | |
|---|---|---|---|---|---|---|
| suction | discharge | |||||
| CCL-201-50 | 65 | 50 | 35,000 | 12,5 | 2 | 18 / 1,2 |
| CCL-225-50 | 65 | 50 | 65,000 | 18 | 5 | 25 / 1,8 |
| CCL–250-80 | 100 | 80 | 90,000 | 24 | 7,5 | 36 / 2,5 |
| CCL-250-100 | 125 | 100 | 1,20,000 | 22 | 10 | 32 / 2,33 |
| CCL-315-80 | 125 | 80 | 1,20,000 | 32 | 15 | 48 / 3,4 |
| CCL-315-100 | 125 | 100 | 1,50,000 | 32 | 20 | 48 / 3,4 |
| CCL-315-125 | 150 | 125 | 2,00,000 | 32 | 30 | 48 / 3,4 |
| CCH-199-50 | 65 | 50 | 50,000 | 50 | 10 | 70 / 5 |
| CCH-200-50 | 65 | 50 | 62,000 | 50 | 12,5 | 70 / 5 |
| CCH-201-50 | 65 | 50 | 75,000 | 50 | 15 | 70 / 5 |
