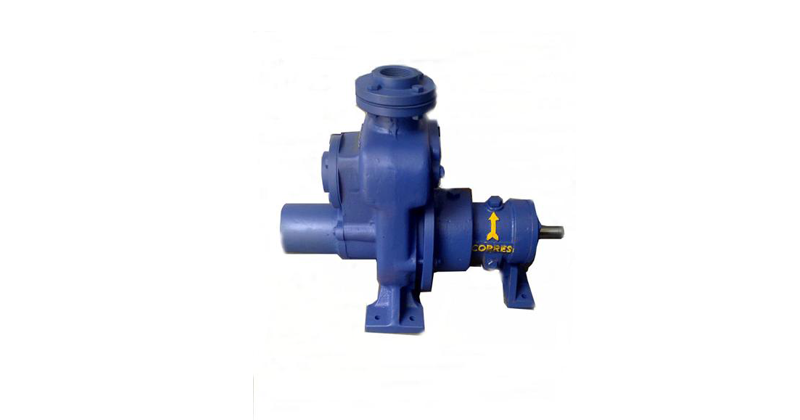

we offer self priming pump with semi open or open impeller to handle mud, dirty water or sewage. As pumps are made with wear plates, the efficiency of pump is very high. These pumps are available from 1" to 3" in cast iron, s.s., and any other metals.
For cooling tower water circulation, Power plants, Irrigation systems, Sugar industry, Paper industry, Wine distillery, Water supply systems of Municipal Corporation and Different chemicals according to MOC, Sprinkler systems, swimming pools, Dam sites.

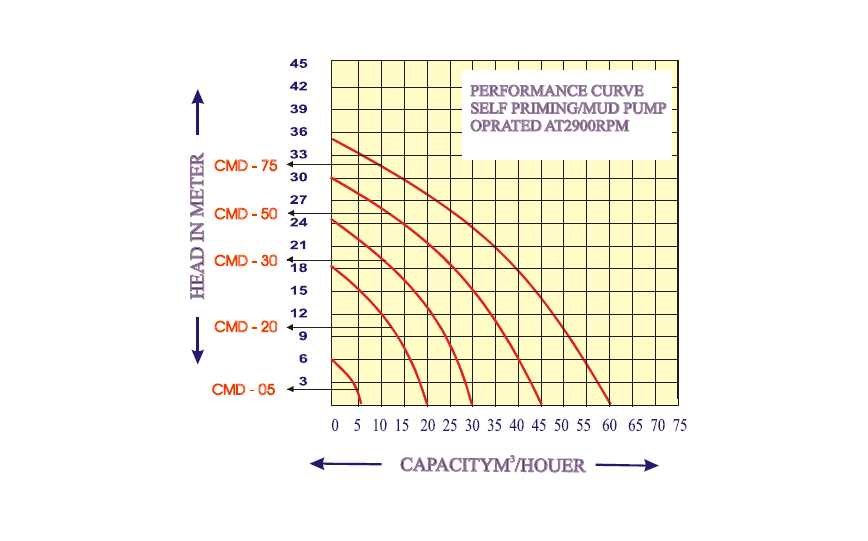

| model type | size ( m.m.) | flow capacity max ltrs/hr | head max meters | h.p. required at 3000 rpm | pressure max psi / kgs | |
|---|---|---|---|---|---|---|
| suction | discharge | |||||
| CMD-05 | 15 | 15 | 2,200 | 6 | 0,5 | 9 / 0,65 |
| CMD-20 | 40 | 40 | 20,000 | 17 | 2 | 25 / 1,8 |
| CMD-30 | 50 | 50 | 30,000 | 25 | 3 | 36 / 2,6 |
| CMD-50 | 80 | 80 | 45,000 | 30 | 5 | 45 / 3,2 |
| CMD-75 | 80 | 80 | 60,000 | 35 | 7,5 | 52 / 3,7 |
