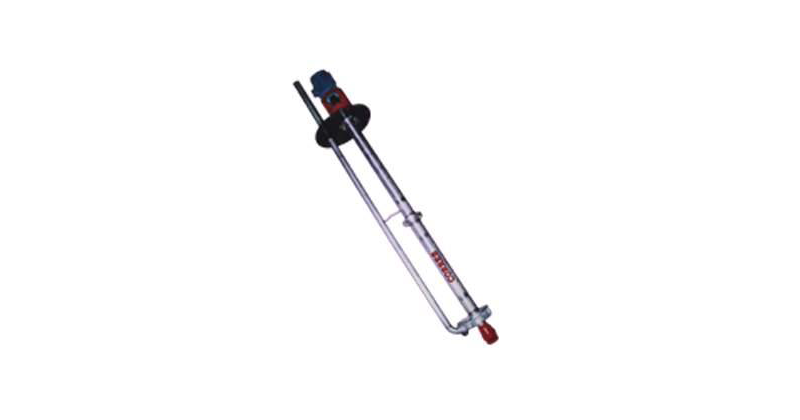

Our range of Immersion / Vertical Submersible Pumps available for all pumping conditions and is designed to suit varied industrial applications. Made using qualitative different material, like c.i., m.s., s.s. etc.

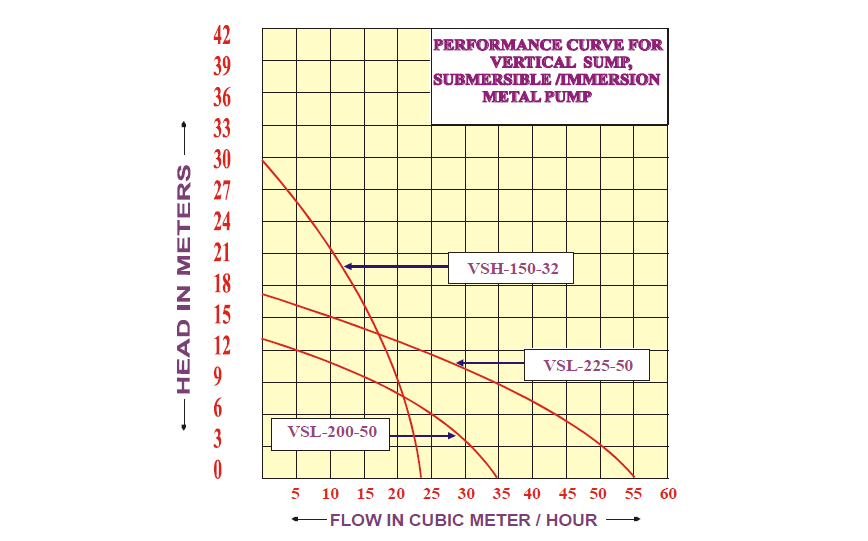

| model type | size ( m.m.) | flow capacity max ltrs/hr | head max meters | h.p. required | rpm | pressure max psi / kgs | |
|---|---|---|---|---|---|---|---|
| suction | discharge | ||||||
| VSL-200-50 | 60 | 50 | 35,000 | 13 | 3 | 1500 | 20 / 1,4 |
| VSL-225-50 | 65 | 50 | 55,000 | 17 | 5 | 1500 | 25 / 1,8 |
| VSH-150-32 | 50 | 32 | 24,000 | 30 | 3 | 2900 | 43 / 3 |
