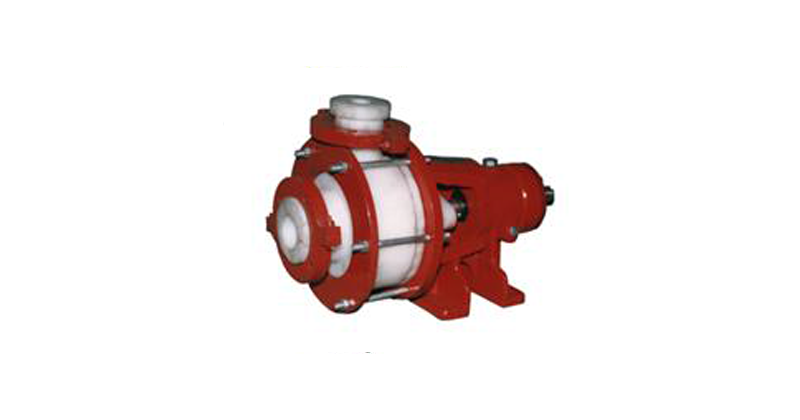

We design and develop a wide range of centrifugal pumps those are widely used for various chemical processes in different industries. These pumps also find application in water effluent treatment plants.
| model type | size ( m.m.) | flow capacity max lTRS/HR. | head max meters | h.p. required at 3000 rpm | pressure max psi / kgs | |
|---|---|---|---|---|---|---|
| suction | discharge | |||||
| PPH-115-15 | 25 | 15 | 7,000 | 15 | 1 | 21 / 1,5 |
| PPH-115-20 | 25 | 20 | 9,000 | 15 | 1 | 21 / 1,5 |
| PPH-115-25 | 40 | 25 | 14,000 | 15 | 1 | 21 / 1,5 |
| PPH-115-40 | 50 | 40 | 24,000 | 15 | 2 | 21 / 1,5 |
| PPH-130-15 | 25 | 15 | 7,400 | 20 | 2 | 28 / 2,0 |
| PPH-130-20 | 25 | 20 | 9,300 | 20 | 2 | 28 / 2,0 |
| PPH-130-25 | 40 | 25 | 17,000 | 20 | 2 | 28 / 2,0 |
| PPH-130-40 | 50 | 40 | 29,000 | 20 | 2 | 28 / 2,0 |
| PPH-150-20 | 25 | 20 | 7,000 | 27 | 2 | 40 / 2,9 |
| PPH-150-25 | 40 | 25 | 18,000 | 27 | 3 | 40 / 2,9 |
| PPH-150-40 | 50 | 40 | 38,500 | 27 | 5 | 40 / 2,9 |
| PPH-150-50 | 65 | 50 | 65,000 | 27 | 7,5 | 40 / 2,9 |
| PPH-165-20 | 25 | 20 | 10,000 | 33 | 3 | 50 / 3,5 |
| PPH-165-25 | 40 | 25 | 20,000 | 33 | 5 | 50 / 3,5 |
| PPH-165-40 | 50 | 40 | 42,000 | 33 | 7,5 | 50 / 3,5 |
| PPH-165-50 | 65 | 50 | 70,000 | 33 | 10 | 50 / 3,5 |
| PPH-180-25 | 40 | 25 | 25,000 | 42 | 5 | 60 / 4,2 |
| PPH-180-40 | 50 | 40 | 45,000 | 42 | 7,5 | 60 / 4,2 |
| PPH-180-50 | 65 | 50 | 60,000 | 42 | 10 | 60 / 4,2 |
