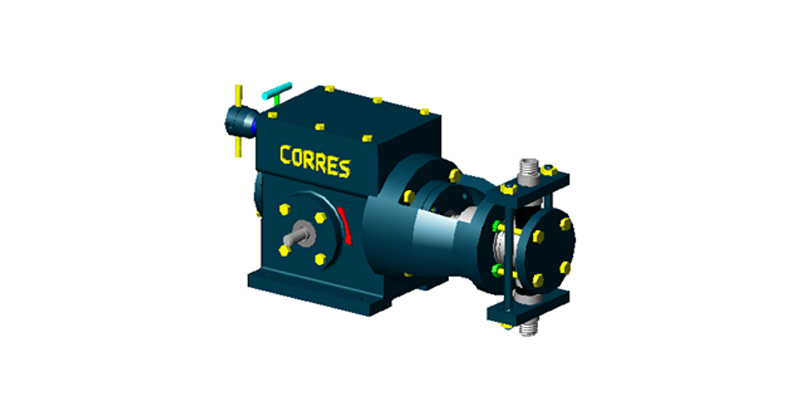

PUMPS ARE AVAILABLE WITH GLAND PACKING ARRANGEMENT.
pumps are manufactured with high strength, dimentionally stable metal for mechanism holding spares and corrosion resistsnt metal stainless steel for operating liquid. all parts are lined with anti corrosive colour to protect it from corrosive atmosphere.all alloy parts chemically analised and properly heat treated.all metal parts are manufactured from casting process and rolled product as required.easy to dismantle and re-assemble for maintenance.gland packings are used of ptfe impregnated or ptfe graphite reinforced as per application.
any controoled volume process in any industries.
where ever flow variation required from minimum to its maximum capacity during even running of pump.
METALIC
| model type | size ( m.m.) | flow capacity max ltrs per | head max meters | h.p. required at 1500 rpm | pressure max psi / kgs | ||
|---|---|---|---|---|---|---|---|
| suction | discharge | minut | hr. | ||||
| cvl-1842-20 | 20 | 20 | 0 to 4 | 0 to 240 | 20 | 1 | 28/2 |
