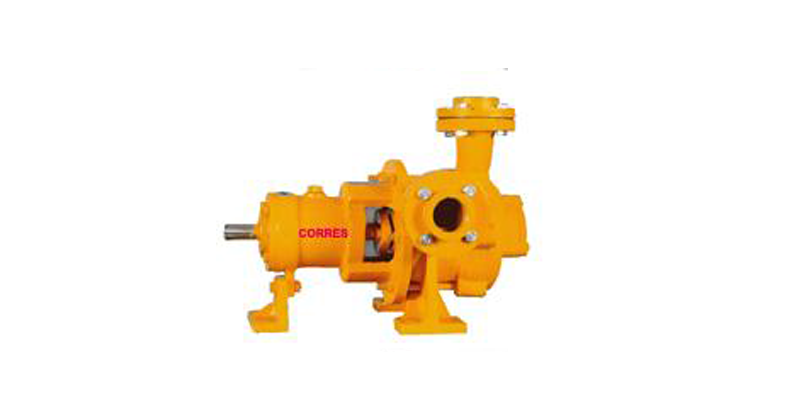

We have gained expertise in designing and development of metal pumps for filter press. These are available as per the technical specifications of our clients and is offered at filter press application.

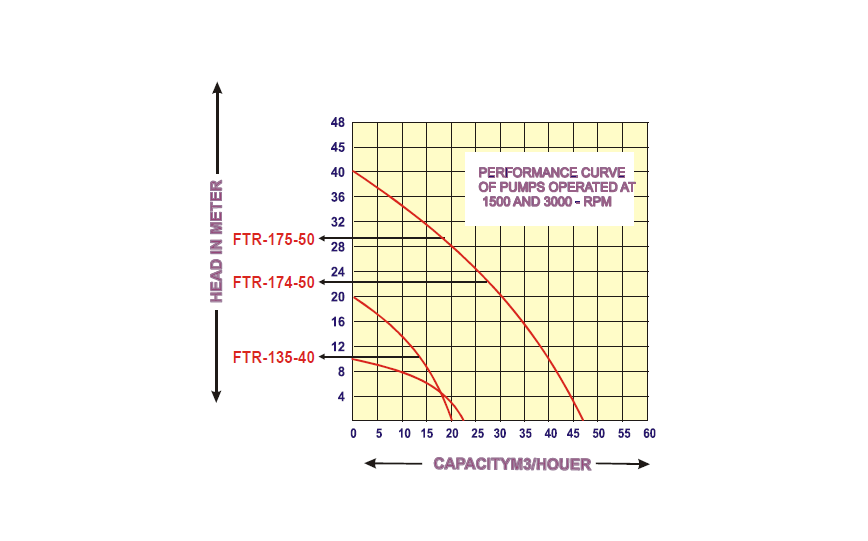

| model type | size ( m.m.) | flow capacity max ltrs/hr | head max meters | h.p. required | rpm | pressure max psi / kgs | |
|---|---|---|---|---|---|---|---|
| suction | discharge | ||||||
| FTR-135-40 | 40 | 40 | 20,000 | 20 | 3 | 3000 | 28 / 2,0 |
| FTR-174-50 | 50 | 50 | 47,000 | 40 | 7,5 | 3000 | 57 / 4 |
| FTR-175-50 | 50 | 50 | 22,000 | 10 | 2 | 1500 | 14 / 1 |
