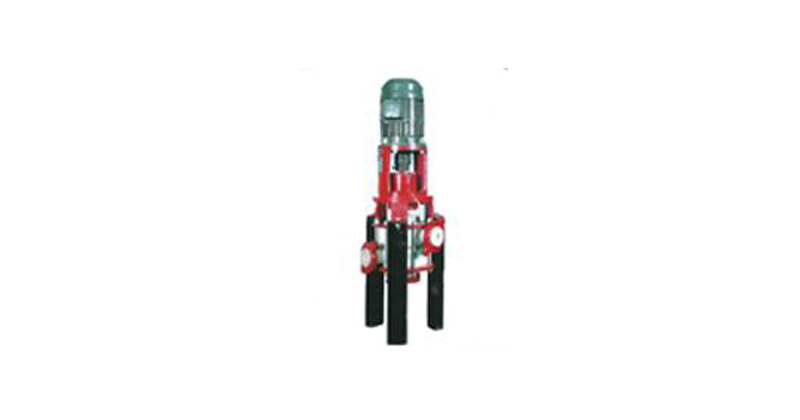

We offer vertical Glandless Seal less Pump (P.P.-VPL And VPH Type) that is designed according to well known successful two pipe principle, chemical process pump of polypropylene (plastic) material.
| model type | size ( m.m.) | flow capacity max lTRS/HR. | head max meters | h.p. reqd at 1500 rpm | pressure max psi / kgs | ||
|---|---|---|---|---|---|---|---|
| suction | discharge | over flow | |||||
| VPL-165-20 | 25 | 20 | 25 | 5,000 | 7 | 1 | 10 / 0,75 |
| VPL-165-25 | 40 | 25 | 25 | 8,000 | 7 | 1 | 10 / 0,75 |
| VPL-165-40 | 50 | 40 | 40 | 20,000 | 7 | 1,5 | 10 / 0,75 |
| VPL-165-50 | 65 | 50 | 50 | 33,000 | 7 | 2 | 10 / 0,75 |
| VPL-215-20 | 25 | 20 | 25 | 7,000 | 13 | 1,5 | 20 / 1,4 |
| VPL-215-25 | 40 | 25 | 25 | 11,000 | 13 | 1,5 | 20 / 1,4 |
| VPL-215-40 | 50 | 40 | 40 | 25,000 | 13 | 2 | 20 / 1,4 |
| VPL-215-50 | 65 | 50 | 50 | 40,000 | 13 | 3 | 20 / 1,4 |
| VPL-225-20 | 25 | 20 | 25 | 7,400 | 15 | 2 | 22 / 1,6 |
| VPL-225-25 | 40 | 25 | 25 | 11,500 | 15 | 2 | 22 / 1,6 |
| VPL-225-40 | 50 | 40 | 40 | 26,000 | 15 | 3 | 22 / 1,6 |
| VPL-225-50 | 65 | 50 | 50 | 42,000 | 15 | 5 | 22 / 1,6 |
